Kiosks

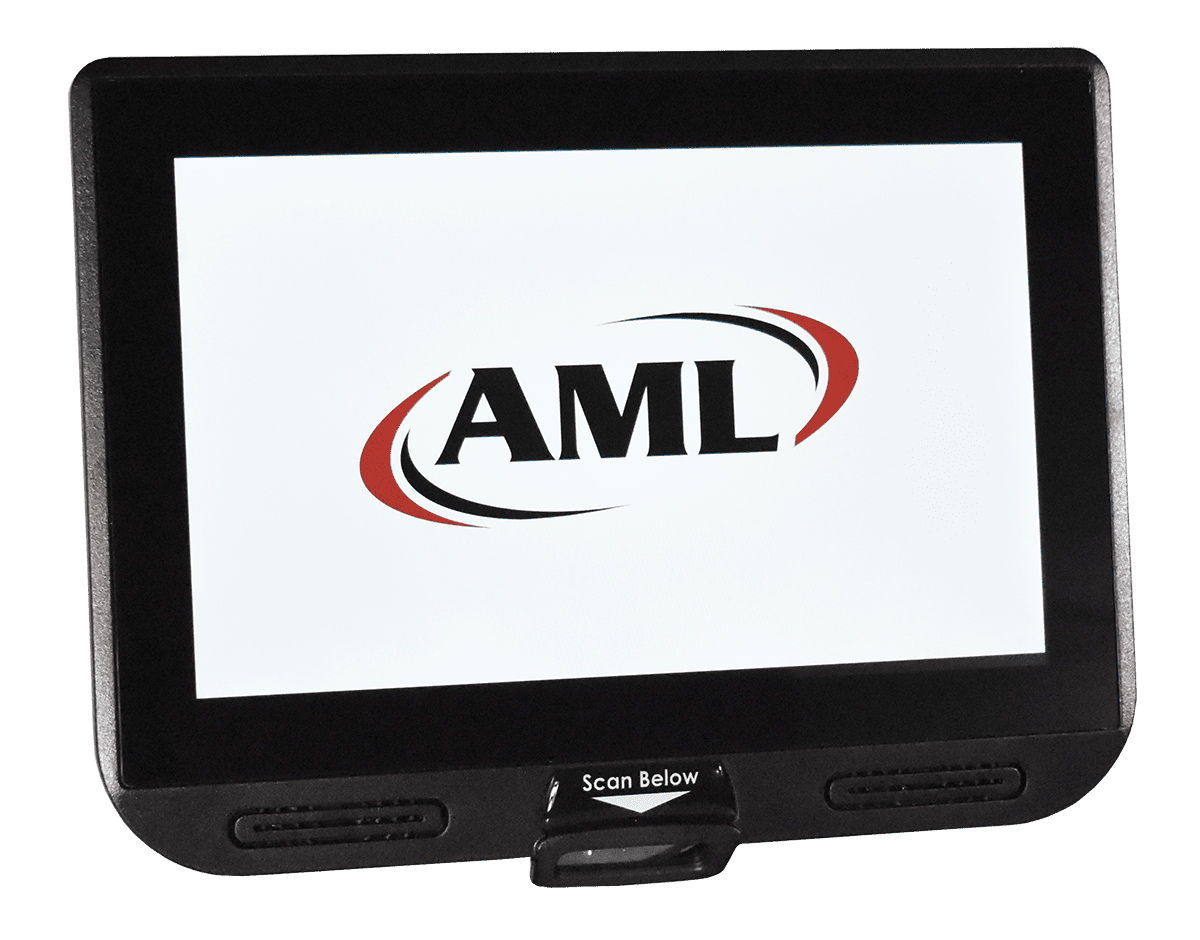

Monarch Interactive Kiosk

Monarch

Interactive Kiosk

The Monarch is the next generation of small-form-factor kiosks developed by AML. The Monarch Enterprise self-service kiosk is a new dimension in customer-facing technology.

KDT3 Multimedia Kiosk

KDT3

Multimedia Kiosk

The KDT3 comes equipped with an 8" SVGA color LCD with touch panel, as well as built-in Power-over-Ethernet, integrated barcode scanner, and optional Wi-Fi radio.

Phoenix Mini Kiosk

Phoenix

Mini Kiosk

The Phoenix is a full-featured, general purpose kiosk/data terminal with a wide variety of application possibilities. It is powered by Windows® CE 6.0, and features a number of I/O options.

AML Kiosk Features

Operating System
Monarch(Windows 8.1) Windows 8.1
Industry Pro
Monarch(Windows 10) Windows 10
Monarch(Android 6.0) Android 6.0 Marshmallow
KDT3 Windows CE 6.0 Pro
Phoenix Windows CE 6.0 Pro
Microprocessor
Monarch(Windows 8.1) Intel Atom
X86-64
1.33GHZ Dual Core
Monarch(Windows 10) Intel Atom
X86-64
1.33GHZ Dual Core
Monarch(Android 6.0) Intel Atom
X86-64
1.33GHZ Dual Core
KDT3 TI OMAP
ARM
600 MHz
Phoenix i.MX283
ARM
454 MHz
Memory
Monarch(Windows 8.1) 2GB DDR3L
Monarch(Windows 10) 2GB DDR3L
Monarch(Android 6.0) 2GB DDR3L
KDT3 128 MB/256MB
Phoenix 128 MB/512MB
Display
Monarch(Windows 8.1) 10.1″ Color LCD
1280 x 800
Monarch(Windows 10) 10.1″ Color LCD
1280 x 800
Monarch(Android 6.0) 10.1″ Color LCD
1280 x 800
KDT3 8″ Color LCD
800 x 600
Phoenix 5.6″ Color
640 x 480
Touch Panel
Monarch(Windows 8.1) Projected Capacitive
Multi-Touch
Monarch(Windows 10) Projected Capacitive
Multi-Touch
Monarch(Android 6.0) Projected Capacitive
Multi-Touch
KDT3 Resistive
Single Touch
Phoenix Resistive
Single Touch
Speaker
Monarch(Windows 8.1) Stereo, 3 Watts
Monarch(Windows 10) Stereo, 3 Watts
Monarch(Android 6.0) Stereo, 3 Watts
KDT3 Stereo, 2 Watts
Phoenix Tonal Beeper
Barcode Scanning
Monarch(Windows 8.1) 2D Imager
Monarch(Windows 10) 2D Imager
Monarch(Android 6.0) 2D Imager
KDT3 2D Imager
Phoenix 2D Imager
Input/Output
Monarch(Windows 8.1) USB 2.0 x 2
RJ45 Gigabit Ethernet
HDMI Output
Monarch(Windows 10) USB 2.0 x 2
RJ45 Gigabit Ethernet
HDMI Output
Monarch(Android 6.0) USB 2.0 x 2
RJ45 Gigabit Ethernet
HDMI Output
KDT3 USB OTG 2.0
10/100 Base-T Ethernet
RS-232
Phoenix USB 2.0 x3
10/100 Base-T Ethernet
RS-232 x 2
Communications
Monarch(Windows 8.1) Opt: 802.11 BGN 2X2
with BT 4.0 Smart Ready
Monarch(Windows 10) Opt: 802.11 BGN 2X2
with BT 4.0 Smart Ready
Monarch(Android 6.0) Opt: 802.11 BGN 2X2
with BT 4.0 Smart Ready
KDT3 WLAN: Optional
802.11b/g/n radio
Phoenix WLAN: Optional
802.11b/g/n radio
Power
Monarch(Windows 8.1) PoE or 5VDC
Monarch(Windows 10) PoE or 5VDC
Monarch(Android 6.0) PoE or 5VDC
KDT3 PoE or 12 VDC
Phoenix PoE or 12 VDC
Mounting
Monarch(Windows 8.1) Wall Mount Bracket
VESA 75
Monarch(Windows 10) Wall Mount Bracket
VESA 75
Monarch(Android 6.0) Wall Mount Bracket
VESA 75
KDT3 Wall Mount Bracket
VESA 75
Phoenix Wall Mount Bracket
VESA 75
Size
Monarch(Windows 8.1) 10.5″ x 8.3″ x 1.9″
Monarch(Windows 10) 10.5″ x 8.3″ x 1.9″
Monarch(Android 6.0) 10.5″ x 8.3″ x 1.9″
KDT3 8.5″ x 9.4″ x 2″
Phoenix 5.75″ x 6.625″ x 2″
