Batch Mobile Computer

Overview

Versatile and Durable for Any Enviroment

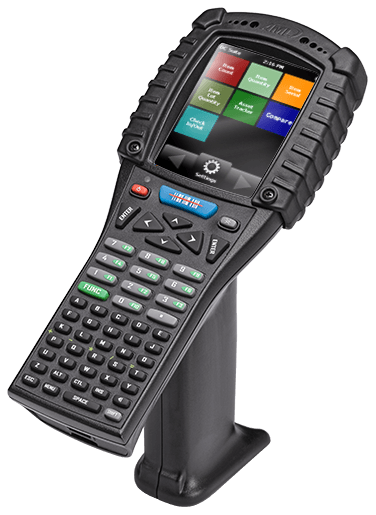

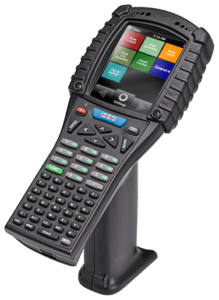

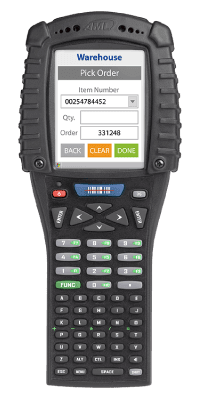

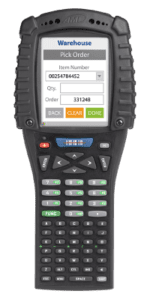

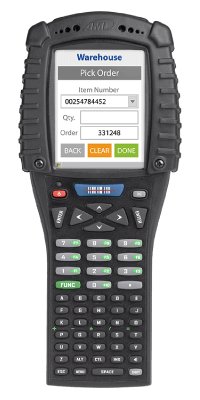

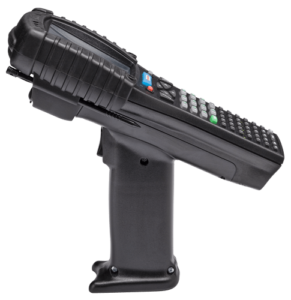

The M7225b batch mobile computer combines versatility with durability to bring barcode data collection to environments that are not conducive to wireless technology.

Powered by Windows CE 6.0 and pre-loaded with AML's popular DC Suite software, the M7225 is easily adaptable in virtually any environment from manufacturing, distribution, field service, or back-office retail.

With a full alphanumeric keypad, 3.5″ color touchscreen display, high capacity battery, and an array of barcode scan engine options, the M7225 brings a new level of versatility to batch data collection applications.

The combination of the M7225 and DC Suite create an affordable data collection solution for virtually any environment.


* The ACC-5925 cradle is required for charging.

Every M7225b includes:

  • DC Suite Software
  • One Battery
  • Standard one year warranty

Applications

Inventory Control

Counting your inventory is an important aspect of proper inventory control and using barcodes makes the process so much faster, with far fewer errors than manual counting.

Retail / Back Office

Every retail operation, big or small, needs reliable inventory management and it starts at the receiving dock or the back door.

Check In/Out

Use barcodes to track the movement of tools, equipment documents or any other valuable asset. Check them out when they leave their repository, then back in when they are returned. Know who took possession of the item and when.

Asset Tracking

Maintain the location and condition of expensive company property, tools and equipment. Use this information to monitor maintenance, age and value of company assets.

Inventory Control

Counting your inventory is an important aspect of proper inventory control and using barcodes makes the process so much faster, with far fewer errors than manual counting.

Retail / Back Office

Every retail operation, big or small, needs reliable inventory management and it starts at the receiving dock or the back door.

Check In/Out

Use barcodes to track the movement of tools, equipment documents or any other valuable asset. Check them out when they leave their repository, then back in when they are returned. Know who took possession of the item and when.

Asset Tracking

Maintain the location and condition of expensive company property, tools and equipment. Use this information to monitor maintenance, age and value of company assets.

Specifications

M7225b Specifications

Operating System
Windows® Embedded 6.0
Microprocessor
Samsung® S3C2440 @ 400 MHz
Memory (RAM)
128 MB
Memory (Flash Storage)
128 MB Integrated Flash ROM
Expansion
MicroSD Slot
LCD
3.5″ QVGA (320x240), 16-bit Color TFT LCD
Touch Screen
Resistive
Battery
One Lithium-Ion Battery, 2600 mAh, 19.2 watt-hours
Charge Time
Full Charge in ~5 hours
Charge Mode
ACC-5925 cradle
Physical Size
8.9″ L x 3.5″ W x 2.3″ D (225mm x 89mm x 57mm)
Weight
17.6 ounces (w/o optional handle)
Sealing
IP54, NEMA 12
Operating Temperature
-20° to 50°C / -4° to 122°F
Drop Specification
5 ft. drop to concrete
Barcode Scanning (Options)
Lorax “Near/Far” Laser, Standard Range Laser or 2D Omni-Imager
Keypad
55-key alphanumeric
User Feedback
ScreenFlash Scan Verification,
Integrated Beeper/Speaker,
Programmable Vibration Motor,
Good/Bad Read LED Indicator

Accessories

4-Position Battery Charger ACC-7037

Charge up to four AML approved, handheld batteries at one time, with one device.

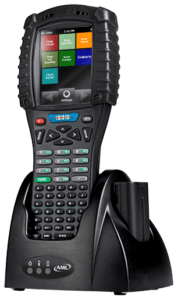

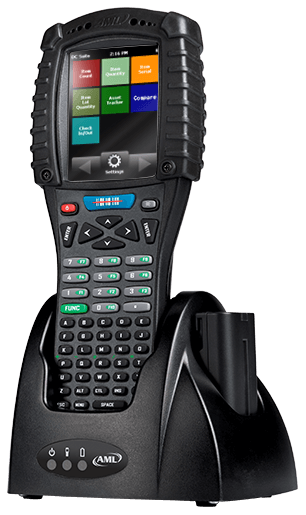

Charging Cradle ACC-5925

Charge a compatible AML device and spare battery.

4-Position Handheld Charger ACC-5935

Charge up to four compatible AML handhelds at one time, with one device.

Vehicle Mounted Charger ACC-7036

Charge a compatible AML device while mounted directly to a vehicle/forklift.

Holster CAS-7101H

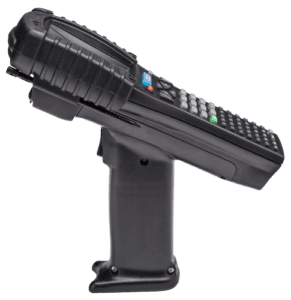

Carry a compatible AML device, with or without the pistol-grip handle, in this convenient holster with belt.

Vehicle Cradle ACC-7038

Non-charging cradle for compatible AML devices to be mounted to vehicle/forklift.

Warranties

AML products are warranted against defects in material and workmanship under normal use and service for a period of one year from the date of purchase. The obligation of AML under the Standard Factory Warranty is limited to furnishing labor and materials necessary to return the product to its normal operating condition, or to replace the unit, at AML’s discretion, and only on a “to factory” basis. This limited warranty does not extend to any product which has been modified, misused, abused, or incorrectly installed.

An Extended Warranty REPLACES the standard limited warranty, and provides for the following additional benefits.

  • Three years of coverage from the date the product ships from AML.
  • Covers failures as a result of normal wear and tear (not abuse).
  • Covers firmware upgrades.
  • Four (4) business-day turnaround, excluding time in transit, when RMA number is properly marked on the outside of the box.
  • Standard return freight (FedEx ground) included.

The Extended Warranty may be purchased anytime during the term of the standard limited warranty with the start date retro-activating back to the date the product shipped from AML. The Extended Warranty is not an extension of the standard warranty, but instead replaces it. The start date of the Extended Warranty is the start date of the original warranty. Note that the Extended Warranty does not cover products that have been subjected to misuse, neglect, improper installation, or that have been modified or used for purposes other than what they were intended.

An Extended Warranty Plus may be purchased for eligible products, as denoted on the product warranty chart below. An Extended Warranty Plus REPLACES the standard limited warranty, and provides for the following additional benefits.

  • Three years of coverage from the date the product ships from AML.
  • Covers the failure of internal components as a result of normal wear and tear.
  • Covers failure of external components regardless of fault. Generally this includes the case, LCD displays, keypads, overlays, lenses, and exposed connectors. Note: This does not include the replacement of internal components as a result of abuse or excessive wear and tear. Printed circuit boards, scan engines, and other electronic assemblies are not covered if they are physically damaged.
  • Covers firmware upgrades.
  • Four (4) business-day turnaround, excluding time in transit, when RMA number is properly marked on the outside of the box.
  • Standard return freight (FedEx ground) included.

The Extended Warranty Plus may be purchased anytime during the term of the standard limited warranty. The Extended Warranty Plus is not an extension of the standard warranty, but instead replaces it. The start date of the Extended Warranty Plus is the start date of the original warranty. Note that the Extended Warranty Plus does not cover products that have been subjected to improper installation, or that have been modified or used for purposes other than what they were intended.
