Mini Kiosk

Overview

Versatile Hardware Platform for Commerical Applications

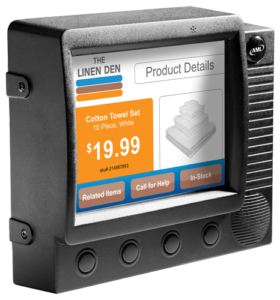

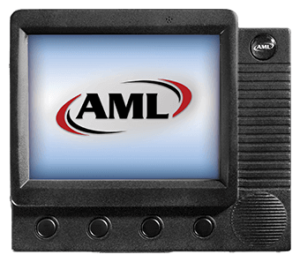

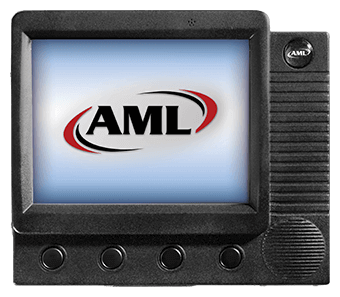

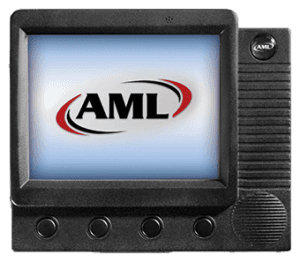

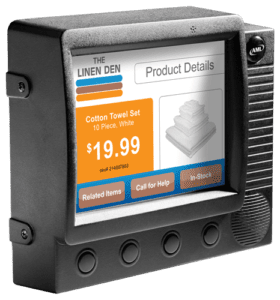

The AML Phoenix is a full-featured, general purpose mini kiosk with a wide variety of application possibilities. Powered by Windows© Embedded CE 6.0, and featuring a number of user input/output options, the Phoenix is perfect for a contemporary time-and-attendance terminal, a retail price checking kiosk, an access control device, or a general purpose kiosk designed to put information at the fingertips of the user.

AML Phoenix Overview Video

Every Phoenix Includes:

  • Power-over-Ethernet (PoE) Ready
  • Documentation
  • Standard one year warranty

Applications

Check In/Out

Use barcodes to track the movement of tools, equipment documents or any other valuable asset. Check them out when they leave their repository, then back in when they are returned. Know who took possession of the item and when.

Self-Service

Self-service applications are becoming a fact of everyday life. Kiosks provide such services as price checking, loyalty program enrollment and maintenance, locating services, gift registries, ordering at fast food and casual dining establishments and so much more.

Access Control

Manage access to sensitive areas and maintain security by requiring badges or codes for entry.

Specifications

Phoenix Specifications

Operating System
Windows® Embedded CE 6.0 R3
Microprocessor
Freescale® i.MX283 @ 454 MHz
Memory (RAM)
128 MB DDR2
Memory (Flash Storage)
512 MB Integrated Flash
Expansion
microSD Card Socket
LCD
5.6″ VGA (640x480), 16-bit Color TFT LCD
Touch Screen
Resistive
Keypad
Four momentary, user programmable push buttons
Audio
Integrated Speaker and Amplifier (tonal)
Power
Power-over-Ethernet (802.3af compliant) Ready; Optional 12V DC Adapter
Physical Size
5.75″ L x 6.625″ W x 2″ D
(146mm x 168mm x 50mm)
Weight
1.45 lbs. (658g)
Operating Temperature
-20° to 50°C / -4° to 122°F
Barcode Scanning (Options)
Integrated 2D Omni-directional Imager;
I/O Ports
Three USB 2.0 High Speed Host Ports;
Two RS-232 (RJ-45 & Expansion Header);
One Wiegand Interface (Header);
Two Isolated Digital Inputs (Screw Terminal Block);
Two Isolated Micro-Relay Outputs (Screw Terminal Block);
Two Internal Barcode Decoder Connector (12 & 14 Pin FPC flex)
Communications
WLAN: Optional 802.11bgn radio
LAN: 10/100 Base-TX Fast Ethernet
Color
Black; Custom Colors Available for Enterprise-Wide Installations (Call for Details)

Accessories

15° Quick Mount Wall Bracket ACC-0759

Quickly and easily mount the Monarch to a wall, or other flush surface at a 15° backwards tilt. Bracket includes screws and padded, felt tape.

12V DC Adapter PWR-8050

If the standard Power-over-Ethernet is not utilized, this 12V DC adapter is required to power the device.

Pole Mount Bracket ACC-0750

Mount the device to a pole or post. Bracket includes four nuts to attach the bracket to the kiosk back plate.

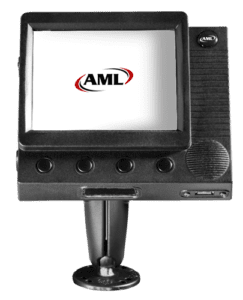

RAM™ Mount Kit ACC-0754

Mount the kiosk to most sturdy surfaces in almost any orientation. Kit includes the RAM™ mount arm, four nuts, four bolts, and two B size RAM™ bases.

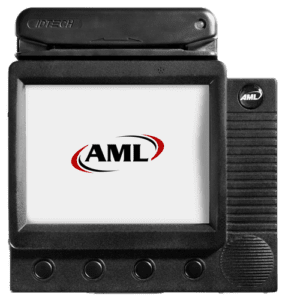

HID™ Card Reader Attachment ACC-750HID

Read HID™ proximity cards. This kit includes HID™ reader, HID™ mounting bracket, two #6-32 x 3/8″ screws, and three #6-32 x 1/4″ screws.

Magnetic-Stripe Reader Attachment ACC-750MSR

Swipe cards or badges with a magnetic-stripe. This kit includes Magnetic-Stripe Reader, MSR mounting bracket, two #4-40 x 3/8″ screws, and three #4-40 x 1/4″ screws.
