Wireless Handheld Terminal

Overview

Rugged Wireless Terminal Emulation

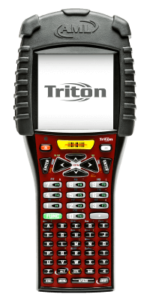

AML Triton Overview VideoThe Triton is a rugged yet cost effective wireless handheld terminal that is built specifically for terminal emulation applications. Simple to use and easy to configure, the Triton is the practical solution for TE applications.

Every Triton includes:

  • Pre-loaded TE clients for VT100/220 and 5250
  • Battery
  • Standard one year warranty

The Triton shines with these productivity-enhancing features:

Highly-Visible Backlit LCD

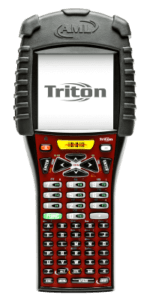

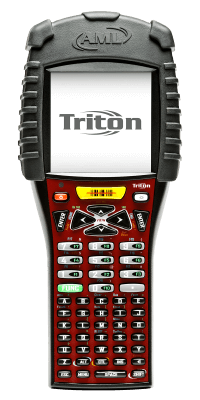

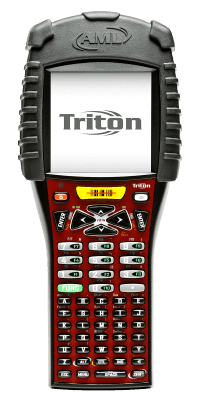

AML Triton with a bright backlit LCD screenThe LCD has a bright-white backlight, making the screen highly visible in any lighting condition.

Best-in-Class, Summit® Wireless Radio

AML Triton's Summit RadioThe Triton comes with an enterprise class Summit radio with 802.11bgn connectivity.

Specialized Keypad Options

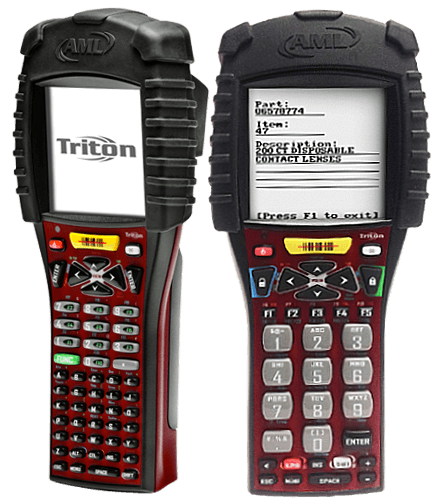

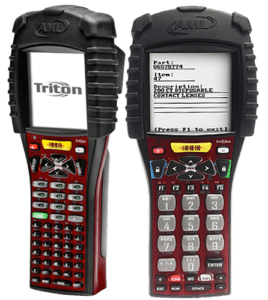

AML Triton with an Alphanumeric and Numeric keypad.35-key Numeric and 55-key Alphanumeric keypad options are available, each ideal for respective data-collection needs.

Applications

Manufacturing

Track raw materials, assemblies and finished goods through the manufacturing process. Know what you have and at what stage in the manufacturing process it is.

Warehouse / Distribution

From Receiving to Shipping, barcode data capture allows supply chain professions to know what inventory they have and where to find it.

Terminal Emulation

Terminal Emulation over Telnet is still a reliable and efficient means of communicating with mobile devices, requiring less bandwidth on the network and fewer resources on the handheld.

Specifications

TRITON Specifications

Operating System
Linux® 2.6.39
Microprocessor
Samsung® S3C2410 32-bit ARM9 @ 202 MHz with Advanced Microcontroller Bus Architecture (AMBA)
Memory (System)
32MB
Memory (Storage)
16MB
LCD
160 x 160 pixel Grayscale LCD with white LED backlight
Battery
7.4V, 2600 mAh, 19.2 watt-hours
Charge Time
100% at 6 hours
Charge Mode
Either the ACC-5925 or ACC-7525 cradle
Physical Size
8.9″ L x 3.5″ W x 2.3″ D
(225mm x 89mm x 57mm)
Weight
22.5 ounces / 638 grams (SE965 scan engine)
Sealing
IP51
Operating Temperature
-10° to 50°C / 14° to 122°F
Drop Specification
5 ft. (1.5m) drop to concrete
Barcode Scanning (Options)
“Near-to-Mid” Range Laser;
Lorax “Near/Far” Laser;
2D Imager
Keypad
55-key alphanumeric or Lockable, 35-key numeric
Wired Communications
USB Type B (Slave)
Serial RS-232 (max. rate 115200 baud)
Wireless Communications
Integrated Summit® 802.11bgn WLAN radio with WEP & WPA/WPA2 security protection

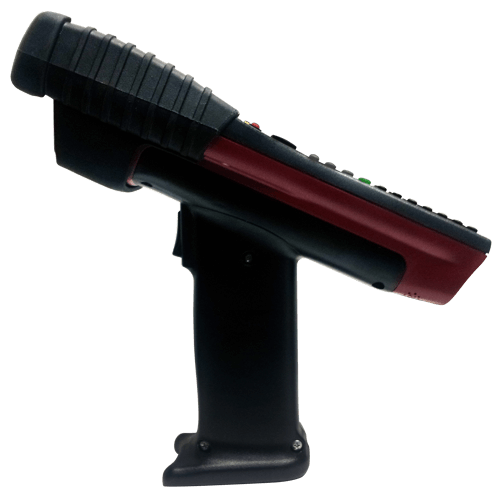

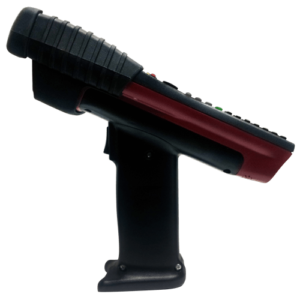

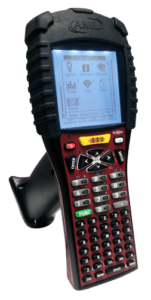

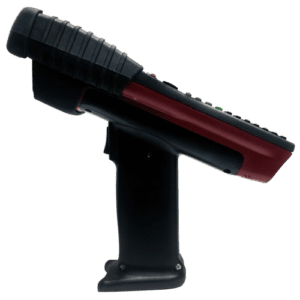

Pistol-Grip Handle
Optional

Accessories

4-Position Battery Charger ACC-7037

Charge up to four AML approved, handheld batteries at one time, with one device.

4-Position Handheld Charger ACC-5935

Charge up to four compatible AML handhelds at one time, with one device.

Vehicle Mounted Charger ACC-7036

Charge a compatible AML device while mounted directly to a vehicle/forklift.

Holster CAS-7101H

Carry a compatible AML device, with or without the pistol-grip handle, in this convenient holster with belt.

Vehicle Cradle ACC-7038

Non-charging cradle for compatible AML devices to be mounted to vehicle/forklift.

Triton Charging Cradle ACC-7525

Charge the AML Triton and a spare battery.

Warranties

AML products are warranted against defects in material and workmanship under normal use and service for a period of one year from the date of purchase. The obligation of AML under the Standard Factory Warranty is limited to furnishing labor and materials necessary to return the product to its normal operating condition, or to replace the unit, at AML’s discretion, and only on a “to factory” basis. This limited warranty does not extend to any product which has been modified, misused, abused, or incorrectly installed.

An Extended Warranty REPLACES the standard limited warranty, and provides for the following additional benefits.

  • Three years of coverage from the date the product ships from AML.
  • Covers failures as a result of normal wear and tear (not abuse).
  • Covers firmware upgrades.
  • Four (4) business-day turnaround, excluding time in transit, when RMA number is properly marked on the outside of the box.
  • Standard return freight (FedEx ground) included.

The Extended Warranty may be purchased anytime during the term of the standard limited warranty with the start date retro-activating back to the date the product shipped from AML. The Extended Warranty is not an extension of the standard warranty, but instead replaces it. The start date of the Extended Warranty is the start date of the original warranty. Note that the Extended Warranty does not cover products that have been subjected to misuse, neglect, improper installation, or that have been modified or used for purposes other than what they were intended.

An Extended Warranty Plus may be purchased for eligible products, as denoted on the product warranty chart below. An Extended Warranty Plus REPLACES the standard limited warranty, and provides for the following additional benefits.

  • Three years of coverage from the date the product ships from AML.
  • Covers the failure of internal components as a result of normal wear and tear.
  • Covers failure of external components regardless of fault. Generally this includes the case, LCD displays, keypads, overlays, lenses, and exposed connectors. Note: This does not include the replacement of internal components as a result of abuse or excessive wear and tear. Printed circuit boards, scan engines, and other electronic assemblies are not covered if they are physically damaged.
  • Covers firmware upgrades.
  • Four (4) business-day turnaround, excluding time in transit, when RMA number is properly marked on the outside of the box.
  • Standard return freight (FedEx ground) included.

The Extended Warranty Plus may be purchased anytime during the term of the standard limited warranty. The Extended Warranty Plus is not an extension of the standard warranty, but instead replaces it. The start date of the Extended Warranty Plus is the start date of the original warranty. Note that the Extended Warranty Plus does not cover products that have been subjected to improper installation, or that have been modified or used for purposes other than what they were intended.
