Firebird Enterprise Self-Service Kiosk
Firebird Self-Service Kiosk Makes Commercial Applications More Convenient

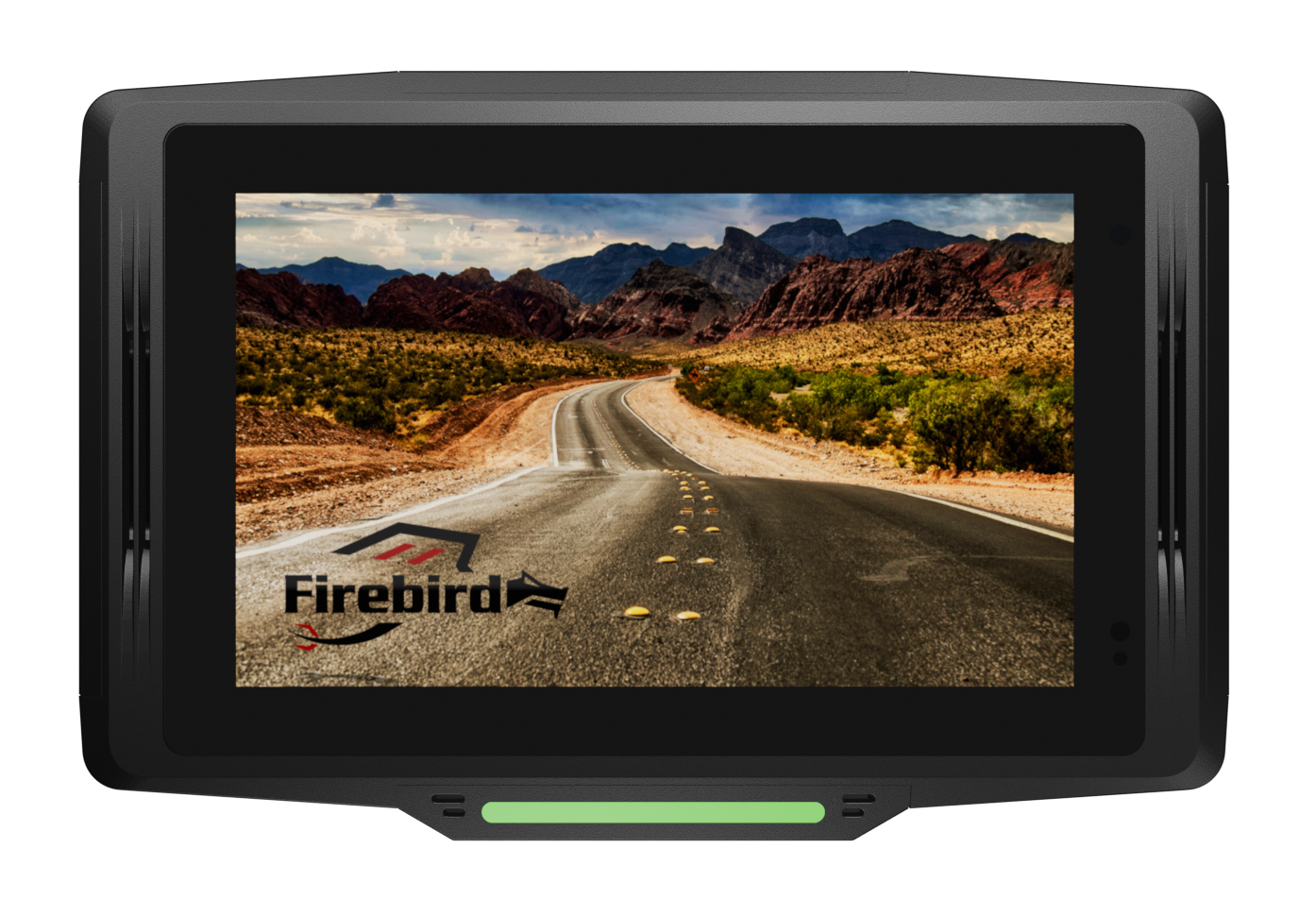

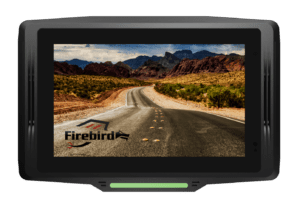

The Firebird Enterprise Kiosk is an all-in-one Android computer with integrated barcode scanning. Firebird’s compact design is ideal for situations where a small footprint is desired. The smaller build of this kiosk gives users the flexibility to set up the kiosk in multiple locations throughout the facility such as poles, walls, counters or endcaps. The Firebird self-service kiosk features a multi-touch capacitive touchscreen that allows for on-screen gesturing users are accustomed to in their personal devices.

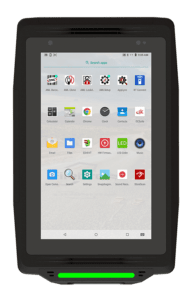

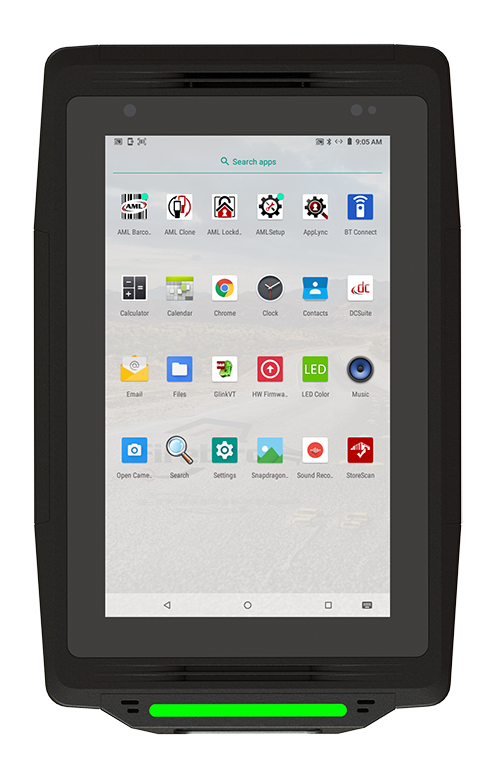

The kiosk also features an RGB LED light bar for device and scan status visual feedback. Firebird is powered by Android 8.1 running on an ARM octa-core processor at 1.8 GHz. Firebird’s powerful architecture is equipped to handle even the most demanding applications. Using consumer-grade devices becomes a financial headache for businesses in the long run as the cost to repair or replace parts isn’t cost-effective. Firebird was built with commercial-grade components made to withstand long-term continuous usage. At its core, the main functionality of Firebird is to act as a standalone stationary computer equipped with a 2D omnidirectional scan engine. This stationary kiosk is useful in many scenarios including scanning badges, gift cards, products, raw materials, and even tools used in the workplace. The optional camera also gives employees to interact with a camera for video or photographing purposes.
AML’s StoreScan price verification software is designed specifically for Firebird self-service kiosk and greatly simplifies the deployment of a retail price checking solution. StoreScan uses a web API interface for its real-time price lookup. This interface is configurable and, in many cases, may be able to work with existing retailer web services with no software development required.

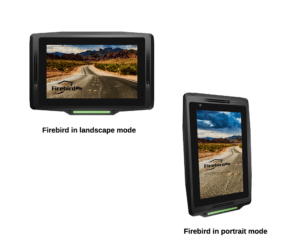

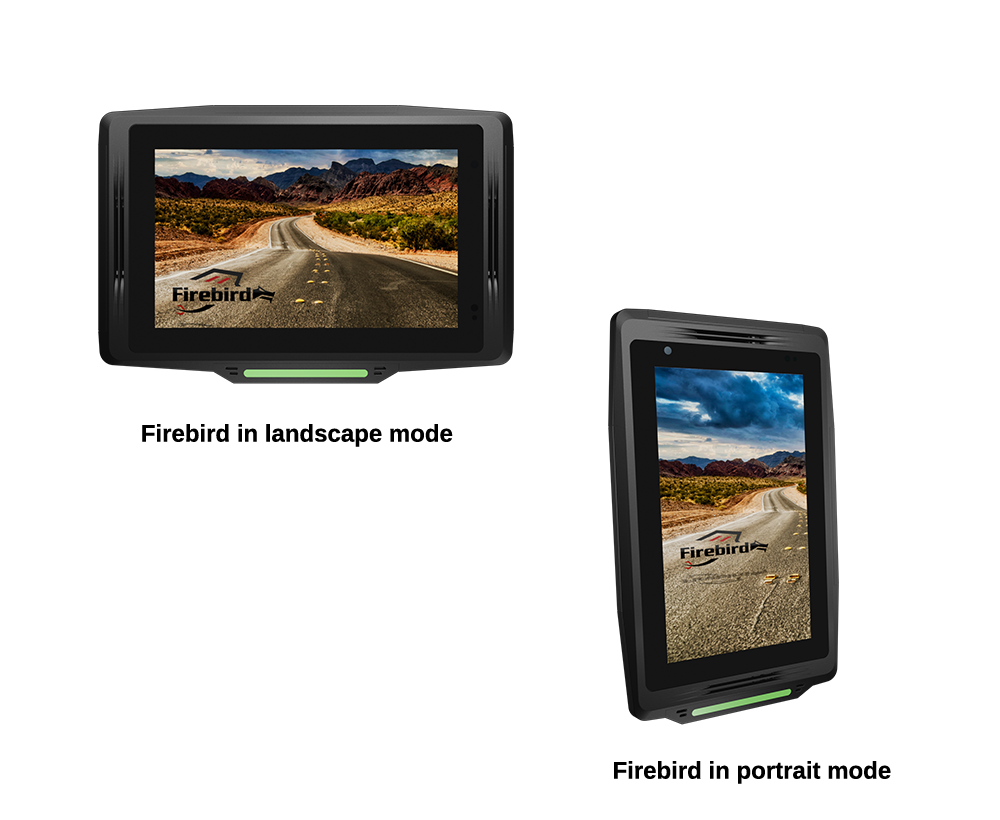

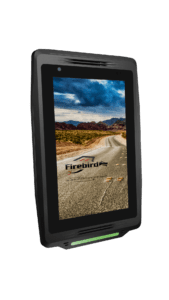

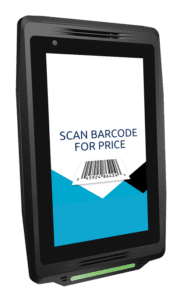

Power-over-Ethernet is a standard feature on all AML kiosks. No need to locate the device near an AC wall outlet as long as an Ethernet connection to a PoE-equipped network is available. A unique feature of the Firebird is its ability to be configured in either a landscape or portrait mode. All I/O Ports are located on the back of the unit as a security measure.
Every Product Includes
Top Features
Industry Use and Sample Tasks

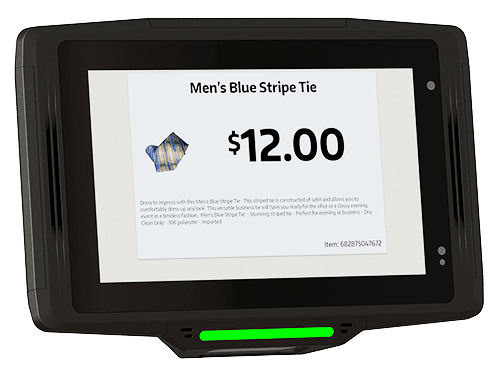

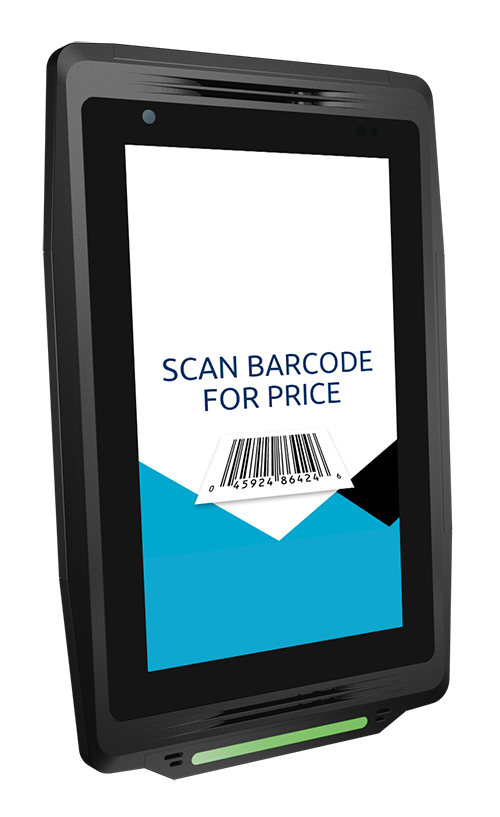

Price Checking
Self-service applications are becoming a fact of everyday life. Kiosks provide a better customer experience with the ability to check the price of an item more conveniently than tracking down a store associate. In some states, retail stores are required to use kiosk devices that are compliant with item pricing laws.
Employee Portal
Allow employees to access information regarding their benefits, request time off, or even clock in or out of the payroll system. Input methods may be on-screen keyboard, barcode scan, magnetic strip, or RFID card.
Hospitality
Offer self-service options to customers for checking in, ordering food or drinks, concierge services, locating sites or establishments, checking flights and so much more.
Check In/Out
Use barcodes to track the movement of tools, equipment documents or any other valuable asset. Check them out when they leave their repository, then back in when they are returned. Know who took possession of the item and when.
Operating System
Android 8.1
Processor
Octa-Core at 1.8 GHz
Memory (RAM)
2GB LPDDR3 SDRAM
Display
7″ LCD, 720 x 1280 resolution IPS Projective Capacitive Multi-touch
Audio
Dual 2W Speaker in Landscape mode, Dual mic port; Single Speaker in Portrait mode
Headphone/Mic port (3.5mm standard CTIA Phone Jack)
Power
5VDC, PoE (802.3af and 802.3at)
Dimensions
212mm W x 142mm H x 33mm D / 8.3″ W x 5.7″ H x 1.3″ D
Weight
1.25 lbs / 0.57kg
Operating Temperature
0° to 40° C / 32° to 104° F
Barcode Scanning
2D Omnidirectional
WLAN / WPAN
802.11a/b/g/n/ac Dual Band / BLE 4.2 Smart Ready
I/O Ports
DC Input (5V)
Ethernet+PoE (10/100)
USB Host (2.0) x3
USB Type C (for debug/app development)
Camera (Optional)
13MP, 74.4 degrees, with Autofocus
5V DC Adapter
PWR-7150US
If the standard Power-over-Ethernet is not utilized, this 5V DC adapter is required to power the device.
Adjustable Angle Mounting Bracket
ACC-0794
Quickly and easily mount the device to a wall, or other flush surface. The mounting bracket allows you to choose your mounting angle (10° or 15°). Bracket includes kiosk mounting hardware.
15° Quick Mount Wall Bracket, Locking
ACC-0793
Quickly and easily mount the device to a wall or another flush surface at a 15° backward tilt. The bracket includes kiosk mounting hardware and a locking mechanism.
Standard Factory Warranty
AML products are warranted against defects in material and workmanship under normal use and service for a period of one year from the date of purchase. The obligation of AML under the Standard Factory Warranty is limited to furnishing labor and materials necessary to return the product to its normal operating condition, or to replace the unit, at AML’s discretion, and only on a “to factory” basis. This limited warranty does not extend to any product which has been modified, misused, abused, or incorrectly installed.
Extended Warranty Plus
An Extended Warranty Plus may be purchased for eligible products, as denoted on the product warranty chart below. An Extended Warranty Plus REPLACES the standard limited warranty, and provides for the following additional benefits.
- Covers the failure of internal components as a result of normal wear and tear.
- Covers failure of external components regardless of fault. Generally this includes the case, LCD displays, keypads, overlays, lenses, and exposed connectors.
Note: This does not include the replacement of internal components as a result of abuse or excessive wear and tear. Printed circuit boards, scan engines, and other electronic assemblies are not covered if they are physically damaged. - Covers firmware upgrades.
- Four (4) business-day turnaround, excluding time in transit, when RMA number is properly marked on the outside of the box.
- Standard return freight (FedEx ground) included.
The Extended Warranty Plus may be purchased anytime during the term of the standard limited warranty. The Extended Warranty Plus is not an extension of the standard warranty, but instead replaces it. The start date of the Extended Warranty Plus is the start date of the original warranty. Note that the Extended Warranty Plus does not cover products that have been subjected to improper installation, or that have been modified or used for purposes other than what they were intended.
Android OS Statement
Today’s consumer devices are typically only supported for 2-3 years from date of release. While the typical life expectancy for industrial equipment is 5+ years, AML historically exceeds this mark substantially, although no guaranteed life span is made or implied due to the litany of outside factors that can impact a product’s life cycle. At a minimum, AML is committed to maintaining the Striker’s OS firmware for as long as the product is kept in production. This includes periodic updates for critical CVEs (Common Vulnerability and Exposures) that are applicable per the Android Security Bulletins. AML also extends that support beyond Android’s updates if their support ends early by manually patching critical vulnerabilities as necessary.
