OVERVIEW

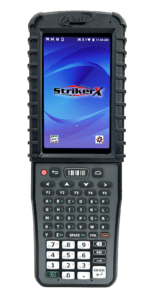

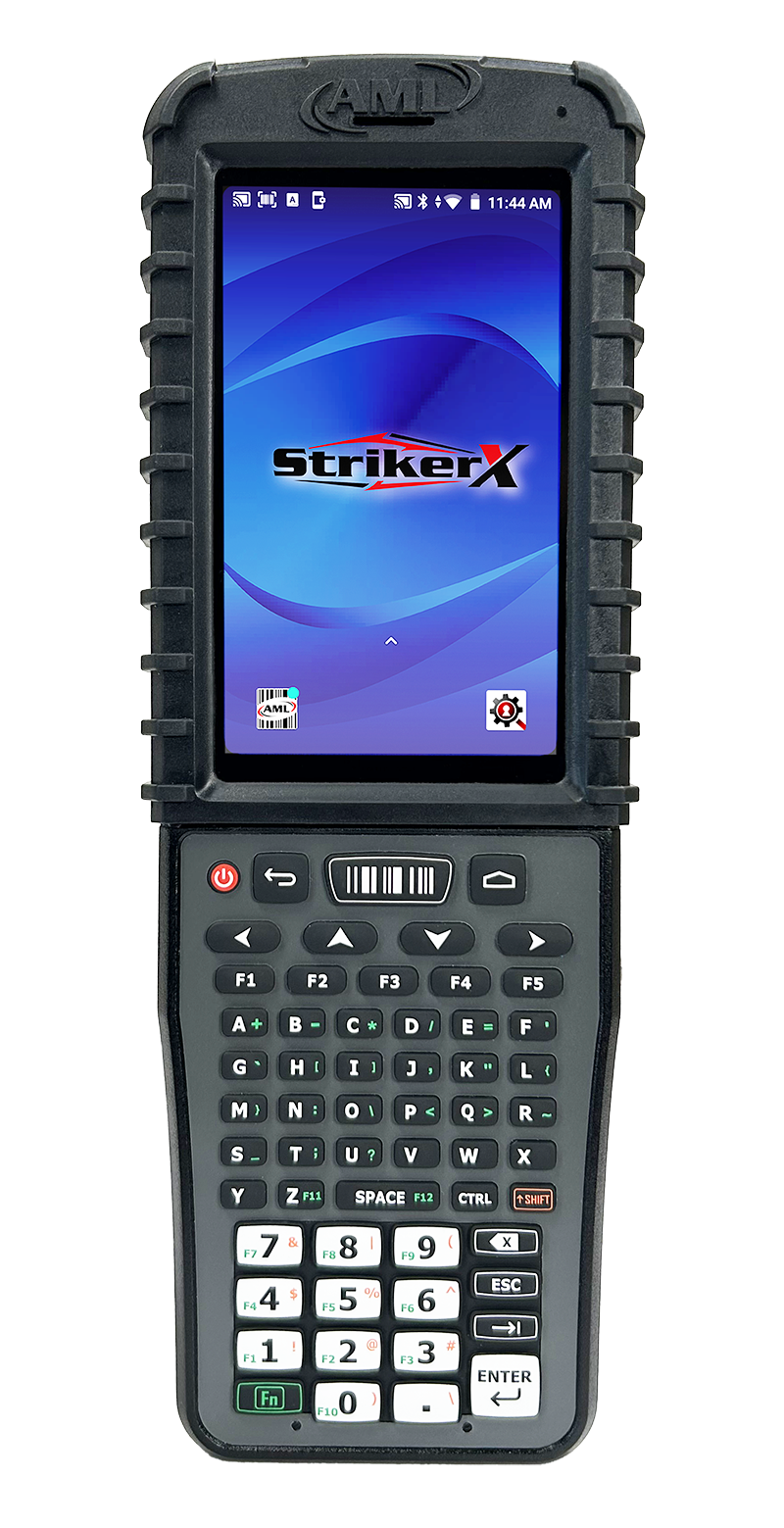

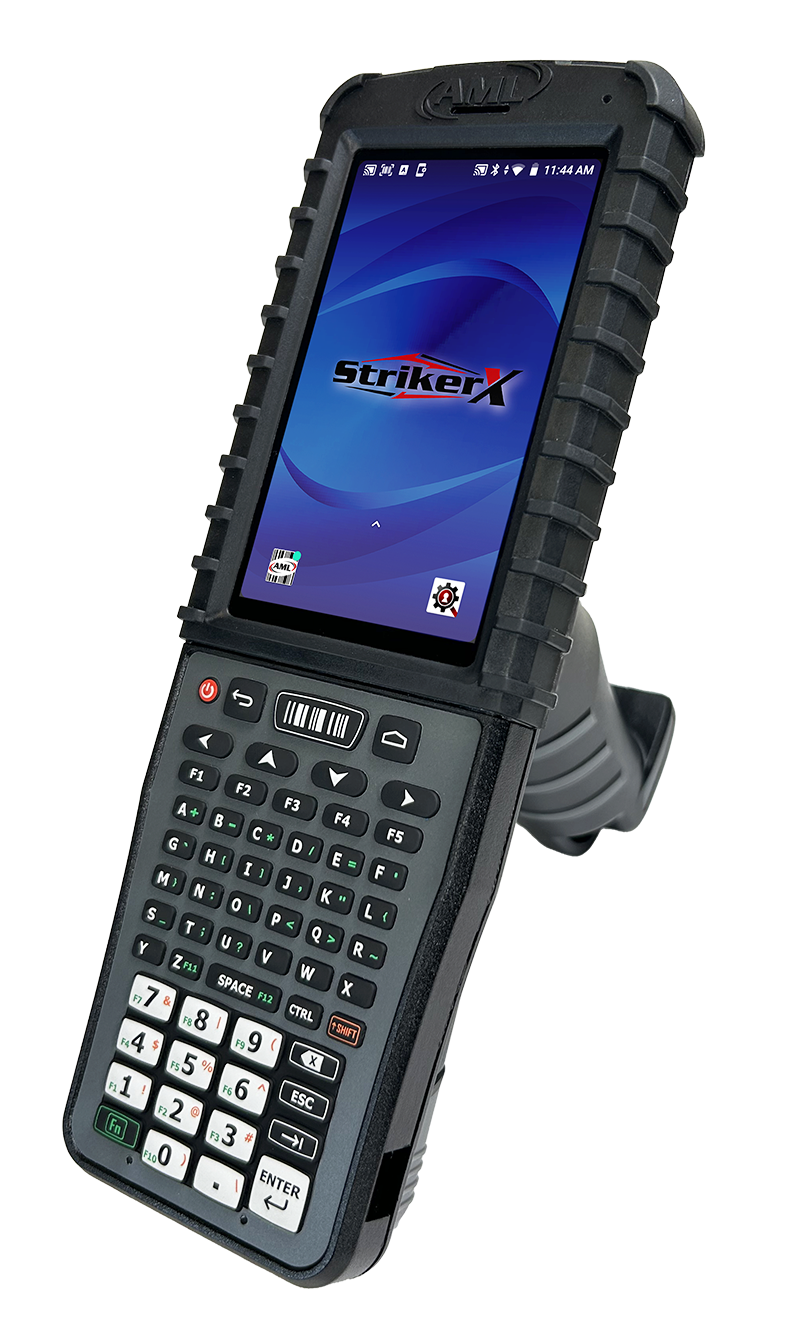

Powerful Mobile Computer for Demanding Industrial Applications
StrikerX is the latest generation of AML’s American-made Android® mobile computers, with all the same great features and utilities as the original Striker, but with some significant upgrades. The combination of these attributes makes StrikerX the ideal android mobile computer for barcode scanning in a wide variety of applications ranging from distribution, manufacturing, retail, and commercial deployments.
Regardless if the task at hand is in a heavy-duty industrial environment like a manufacturing plant, or the relatively docile surroundings of a retail store, Striker will excel in both. It has the durability and ruggedness required by “heavy hands” and tough surroundings, while still being light, compact and comfortable for back-office and retail store floor applications.
Performance to Spare
At the heart of StrikerX is the Qualcomm QSC6490, an octa-core processor capable of speeds up to 2.7GHz. Backed with 4GB of Dynamic RAM and 64GB of flash memory, there is no shortage of power. Even the most demanding, resource-hungry software applications are no match for the StrikerX with the QSC6490 processor. The QSC6490 is considered a “premium tier” component slated for production through 2036.
Wi-Fi for the Future
StrikerX supports the current Wi-Fi standards, including Wi-Fi 6E. It will connect to any legacy 802.11 a/b/g/n/ax network but can also connect to Wi-Fi networks that have been upgraded to Wi-Fi 6E. The latest Wi-Fi 6E standard adds the 6GHz band, which offers more than double the bandwidth of the 5GHz band. The bottom line is that StrikerX will deliver solid performance on existing Wi-Fi networks and will continue to operate as networks are upgraded in the coming years. StrikerX offers the ultimate in “future proofing”.
Barcode Scanning Options

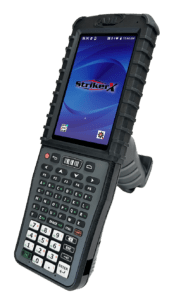

StrikerX can be fitted with different integrated barcode scanners to meet specific application requirements. Whether the bulk of the scanning is done inches away or 40 feet away, StrikerX has a solution. Even the most demanding scanning environments can be tackled with ease thanks to the compact size and light weight of StrikerX. For even more comfort, add the optional pistol-grip handle when scanning is steady and consistent.
Purpose Built Software for Deployment, Operation, and Maintenance
StrikerX comes preloaded with a host of software utilities designed to ease the load of IT admins and make supporting mobile devices the least of their worries. Many of these come preloaded and license-free, while others are optional with a paid subscription.
StrikerX is the ideal mobile computing solution for a wide range of commercial applications including manufacturing, distribution, retail, and healthcare. With advanced ergonomics, a broad assortment of software apps and utilities, unparalleled processing power that is unmatched in the industry, and competitive pricing, the American-Made StrikerX is leading the way.
Every Product Includes
Top Features
- Powered by Android 13+
- Wi-Fi 6E & BLE 5.2 Dual Mode
- 4″ LCD with capacitive touchscreen

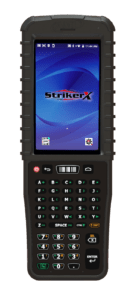

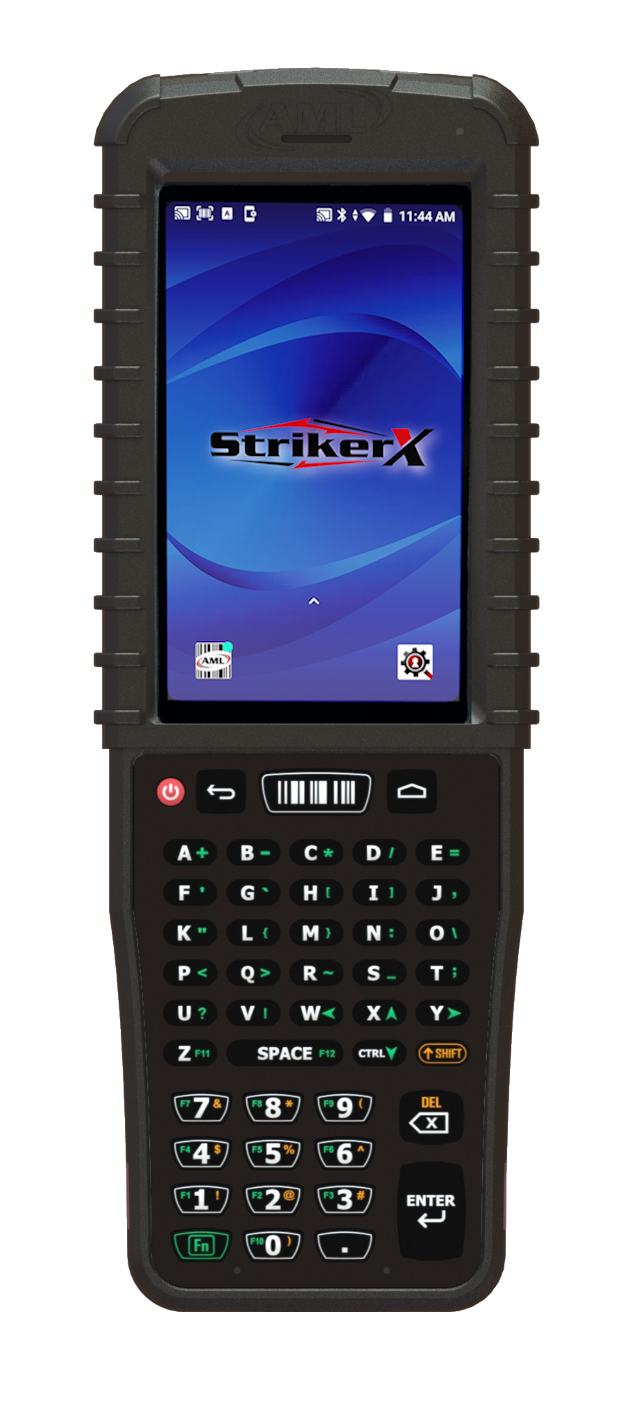

- 58-key or 47-key tactile keypad options
- QCS6490 Octa-core processor
- 6 ft drop to concrete
- 2D Imager or Near/Far 2D Imager
- 24.3 Watt-hour battery
- Integrated flashlight
Industry Use and Sample Tasks
APPLICATIONS
Retail / Back Office
Every retail operation, big or small, needs reliable inventory management and it starts at the receiving dock or the back door.
Manufacturing
Track raw materials, assemblies and finished goods through the manufacturing process. Know what you have and at what stage in the manufacturing process it is.
Warehouse / Distribution
From Receiving to Shipping, barcode data capture allows supply chain professions to know what inventory they have and where to find it.
Terminal Emulation
Terminal emulation over Telnet is still a reliable and efficient method of communicating with mobile devices, requiring less bandwidth on the network and fewer resources on the handheld. The Striker is preloaded with a Glink VT220 license. The Striker is also compatible with other terminal emulation software including Velocity and StayLinked.
SPECIFICATIONS
Operating System
Android 13+
Processor
Qualcomm QCS6490 Octa-core at 2.7 GHz
Dynamic RAM
4GB LPDDR4
Internal Storage
64GB Flash
Display
4″, 480 x 800 TFT LCD
450NITS
Touchscreen
Projected Capacitive Multi-touch
Optically bonded tempered glass
Tactile Keypad
WLAN
802.11ax (Wi-Fi 6E)
WPAN
BLE 5.2 Dual Mode
Main Battery
24.3 Watt-hour Li-Ion
Barcode Scanning
2D Imager
Near/Far 2D Imager
Camera (Optional)
13MP, 74.4 degrees, with Autofocus & Flash (Not available with Handle)
Other Features
Flashlight
Ambient Light Sensor
Accelerometer
Size
With Handle: 8.5″ x 3.1″ x 6.1″ (21.6cm x 7.9cm x 15.5cm)
Without handle: 8.5″ x 3.1″ x 1.8″ (21.6cm x 7.9cm x 4.5cm)
Weight
With Handle: 20.56 oz.
Without Handle: 17.56 oz.
Impact Rating
6-foot drop to concrete
Environmental Sealing
IP65
Operating Temperature
-4° to 122° F
(-20° C to 50° C)
Audio
Built-in 2W Speaker
Headphone/Mic port
ACCESSORIES
Charging Cradle
ACC-7725
The ACC-7725 Mobile Computer Charging Cradle charges any M8700 StrikerX and the spare battery.
4-Position Charging Cradle
ACC-7735
Charge up to four AML StrikerX mobile computers at one time, with one device using the ACC-7735.
Mobile Charging Cradle
ACC-7736
Designed for forklift applications, the Mobile Charging Cradle holds and charges one StrikerX unit. Mounting hardware not included.
Mobile Cradle (Non-charging)
ACC-7738
The Non-Charging Mobile Cradle allows the StrikerX units to be secured on a forklift. Mounting hardware not included.
Spare Battery
180-7800
Spare Battery, 3350 mAh, 24.8 watt-hours
4-Position Battery Charger
ACC-7037
Charge up to four AML-approved, handheld batteries at one time, with one device.
Inline Charger
ACC-7715-PS
If you store your mobile computers in a locker or another compact space, the inline charger is a great option for charging your StrikerX mobile computers. No cradle is necessary. The inline charger is also ideal for keeping your devices charged on a forklift. The PWR-8050US power supply is included.
Holster
CAS-7701H
Carry an AML StrikerX mobile computer in this convenient holster. Belt sold separately (CAS-BELT).
Holster Belt Strap
CAS-BELT
Adjustable belt strap with plastic quick-release buckle for StrikerX holster. The belt is 46 inches in length and 2 inches wide.
Wrist Lanyard
CAS-7800LD
The StrikerX Wrist Lanyard provides an extra layer of security to prevent drops.
Hand Strap
CAS-7700HS
The Hand Strap is designed for the non-handle version of Striker. Grip the device firmly in the palm of your hand.
UV-Locker
UVL432-1000
UV-Locker™ irradiates its contents with ultraviolet-C light (UVC) to sanitize your devices. Simply plug UV-Locker into a standard 110VAC wall outlet, place your devices inside, set the adjustable timer, and then push start.
Antimicrobial Screen Protector
ACC-M77AMSP
Protect the LCD screen from scratches by adding an antimicrobial screen protector to your AML StrikerX. The oleophobic coating makes wiping away fingerprints easier and also repels dust. Installation kit included.
WARRANTIES
Standard Factory Warranty
AML products are warranted against defects in material and workmanship under normal use and service for a period of one year from the date of purchase. The obligation of AML under the Standard Factory Warranty is limited to furnishing labor and materials necessary to return the product to its normal operating condition, or to replace the unit, at AML’s discretion, and only on a “to factory” basis. This limited warranty does not extend to any product which has been modified, misused, abused, or incorrectly installed.
Extended Warranty Plus
An Extended Warranty Plus may be purchased for eligible products, as denoted on the product warranty chart below. An Extended Warranty Plus REPLACES the standard limited warranty, and provides for the following additional benefits.
- Covers the failure of internal components as a result of normal wear and tear.
- Covers failure of external components regardless of fault. Generally this includes the case, LCD displays, keypads, overlays, lenses, and exposed connectors.
Note: This does not include the replacement of internal components as a result of abuse or excessive wear and tear. Printed circuit boards, scan engines, and other electronic assemblies are not covered if they are physically damaged. - Covers firmware upgrades.
- Four (4) business-day turnaround, excluding time in transit, when RMA number is properly marked on the outside of the box.
- Standard return freight (FedEx ground) included.
The Extended Warranty Plus may be purchased anytime during the term of the standard limited warranty. The Extended Warranty Plus is not an extension of the standard warranty, but instead replaces it. The start date of the Extended Warranty Plus is the start date of the original warranty. Note that the Extended Warranty Plus does not cover products that have been subjected to improper installation, or that have been modified or used for purposes other than what they were intended.
Android OS Statement
Today’s consumer devices are typically only supported for 2-3 years from date of release. While the typical life expectancy for industrial equipment is 5+ years, AML historically exceeds this mark substantially, although no guaranteed life span is made or implied due to the litany of outside factors that can impact a product’s life cycle. At a minimum, AML is committed to maintaining the Striker’s OS firmware for as long as the product is kept in production. This includes periodic updates for critical CVEs (Common Vulnerability and Exposures) that are applicable per the Android Security Bulletins. AML also extends that support beyond Android’s updates if their support ends early by manually patching critical vulnerabilities as necessary.
